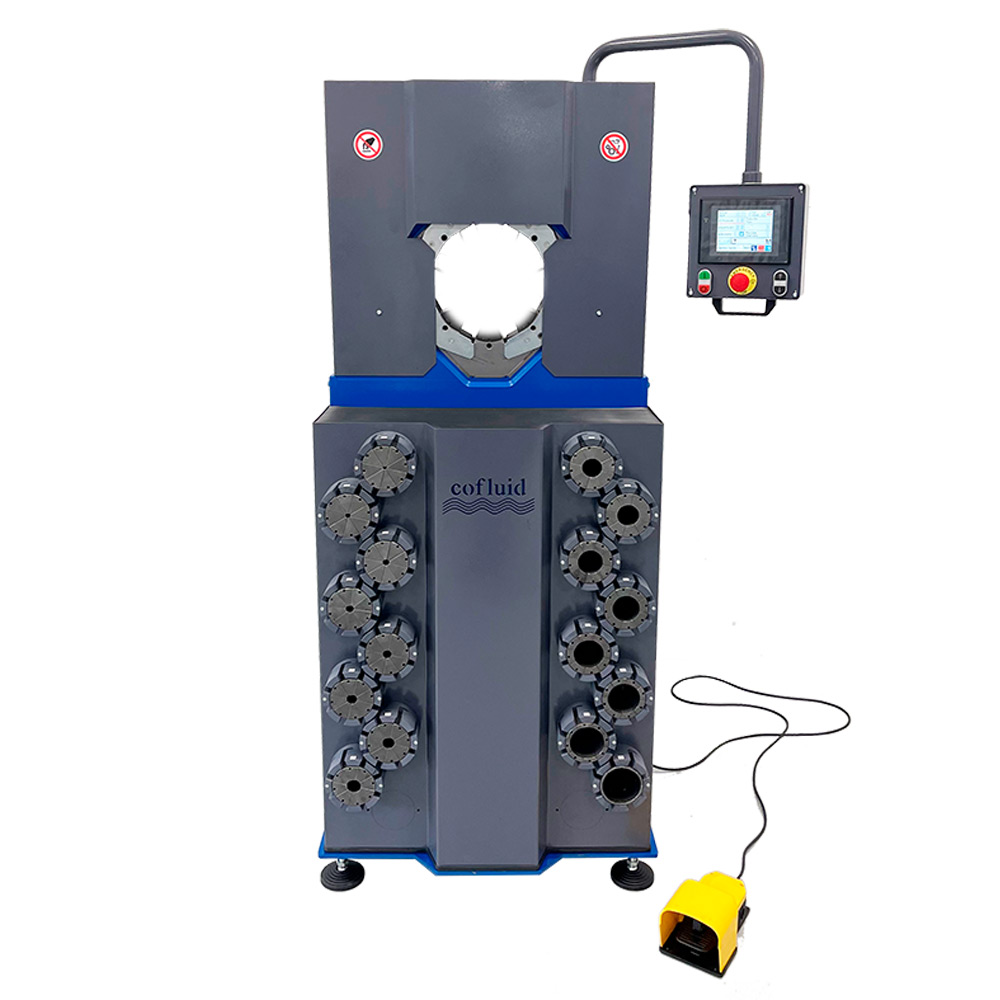

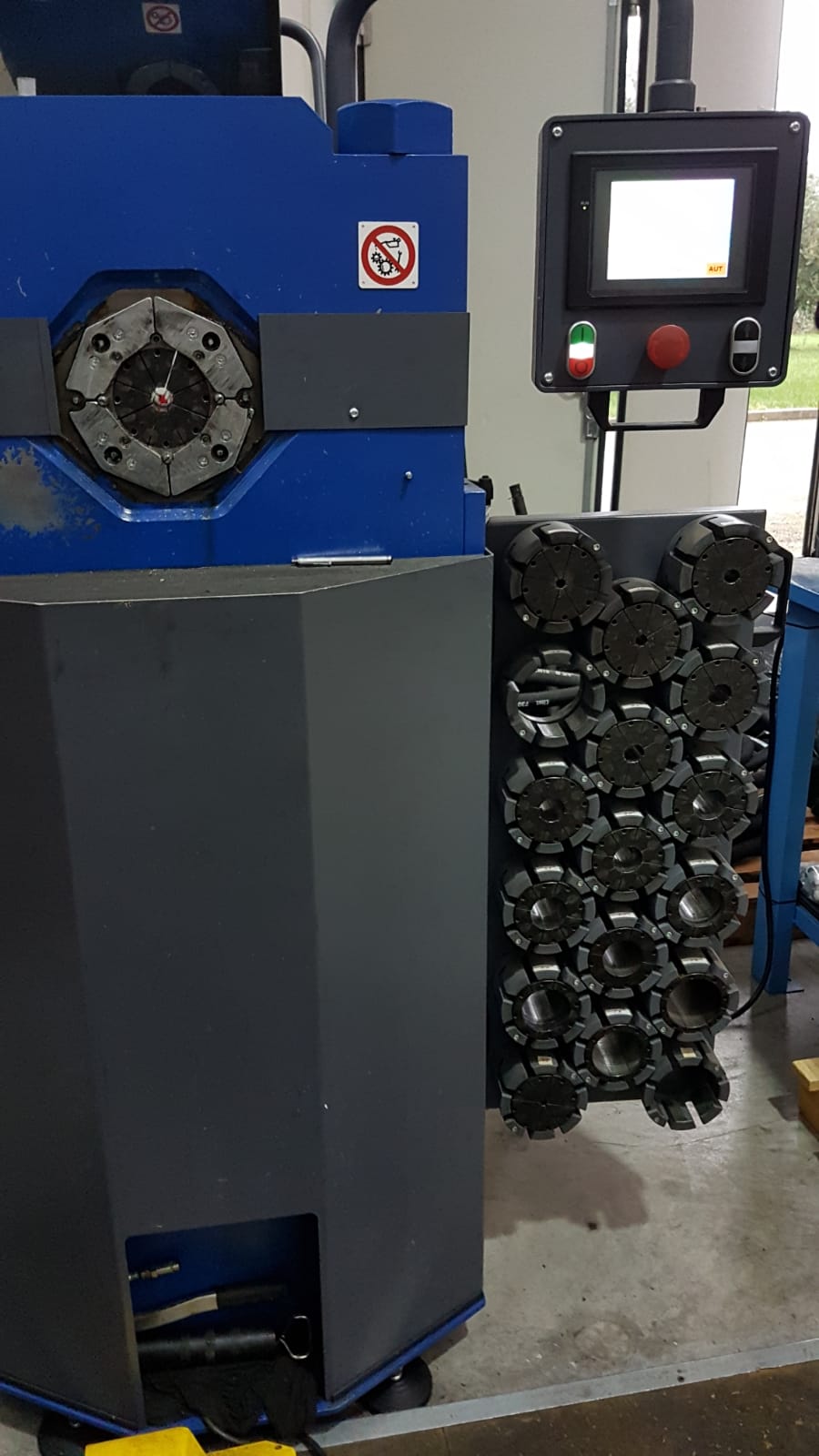

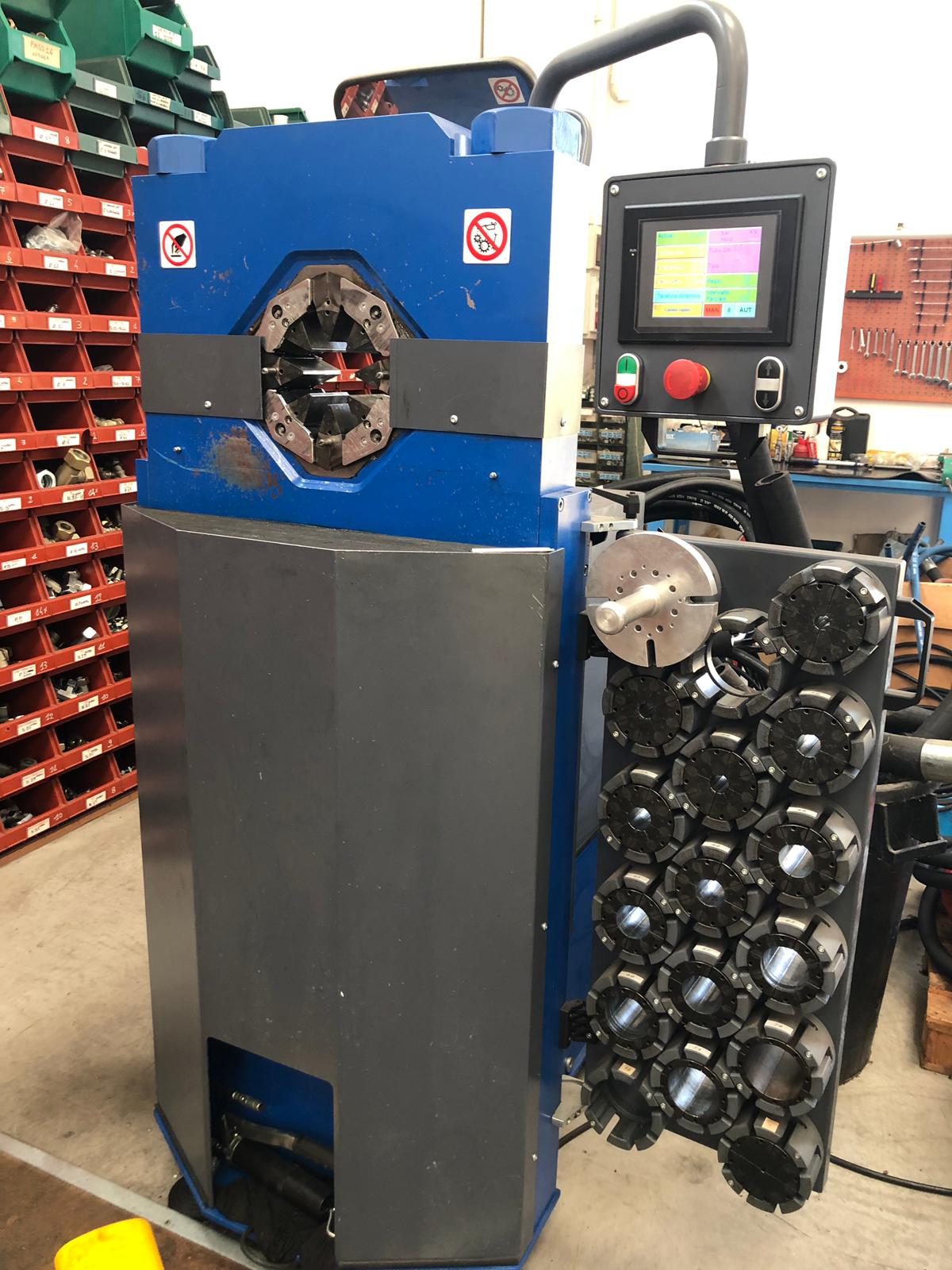

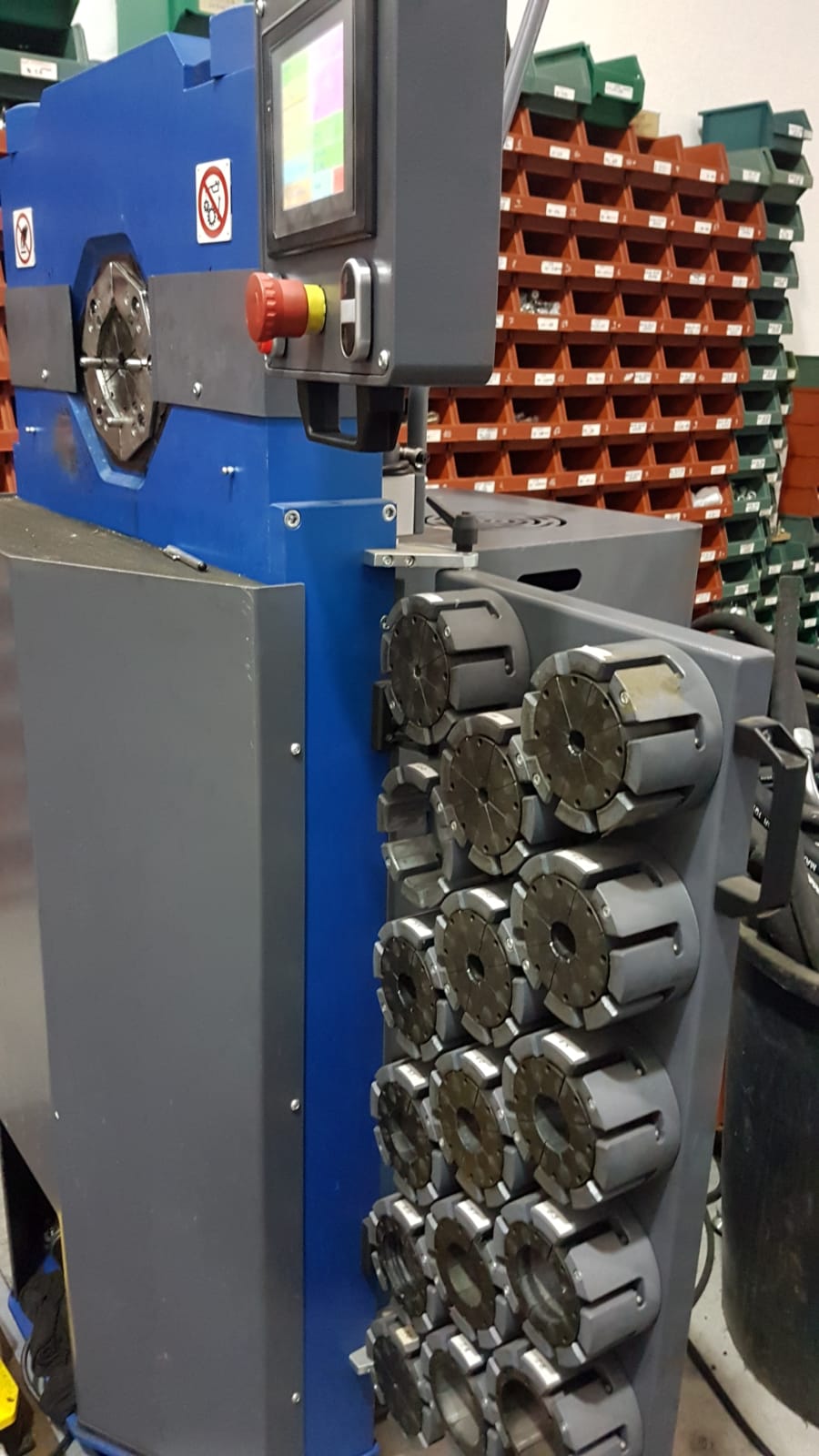

F280ED Used
Crimping machine with multilingual touch screen and optical encoder, which is suitable for 4SP flexible hydraulic hoses up to 2″ and for industrial hoses up to 4.
This crimper is suitable for those who need high productivity.
MAIN FEATURES:
- ED control with multi-language colour touch screen;
- Silenced pump;
- Double speed;
- Equipped with automatic reopening of the head;
- Narrow, to facilitate the entry of the curved fittings;
- Equipped with hydraulic control unit;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Camera | Electric pedal |
| Automatic lubrication | Rearview mirror |
| Automatic rear stop | ED control with multilingual touch screen |
| Lateral quick change dispenser | Silenced machine |
| Frontal quick change dispenser | Double speed |
| Special voltage | Lighting of the working area |
| Quick change aluminum handle | |
| Industry 4.0 kit | |
| Crimp force control | |
| Marking dies | |
| Brake dies | |
| Air conditioning dies | |
| Special dies | |
| Multistep |
| ø (mm) | 7 | 10 | 13 | 14 | 16 | 18 | 19 | 21 | 22 | 25 | 26 | 30 | 35 | 40 | 45 | 51 | 57 | 63 | 69 | 74 | 78 | 84# | 96** |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 60 | 60 | 60 | 60 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 100 | 100 | 100 | 105 | 105 | 105 | 105 |
*Indicative value depending on the product which needs to be crimped
**With die holder
# Without quick change
| Crimping Force | 280 Ton (308.64 US TONS) |
|---|---|
| Operating Range | 7-116mm (0.27”-4.57”) |
| Max Crimping Range | 116mm** (4.57”) |
| 6 Spirals Hose | 1.1/2”* |
| 4 Spirals Hose | 2”* |
| Industrial Hose | 4”* |
| Max Opening with Dies | +70mm (2.76”) |
| Max Opening without Dies | 166mm (6.54”) |
| Power | 5.5 Kw (7.5Hp) |
| Standard voltage | 400 V 50/60 Hz |
| Dimensions LxWxH | 690x850x1600mm (27.2”x33.46”x62.99”) |
| Weight without oil | 1040 Kg (2292.8 Lbs) |
| Oil | 70 L |
