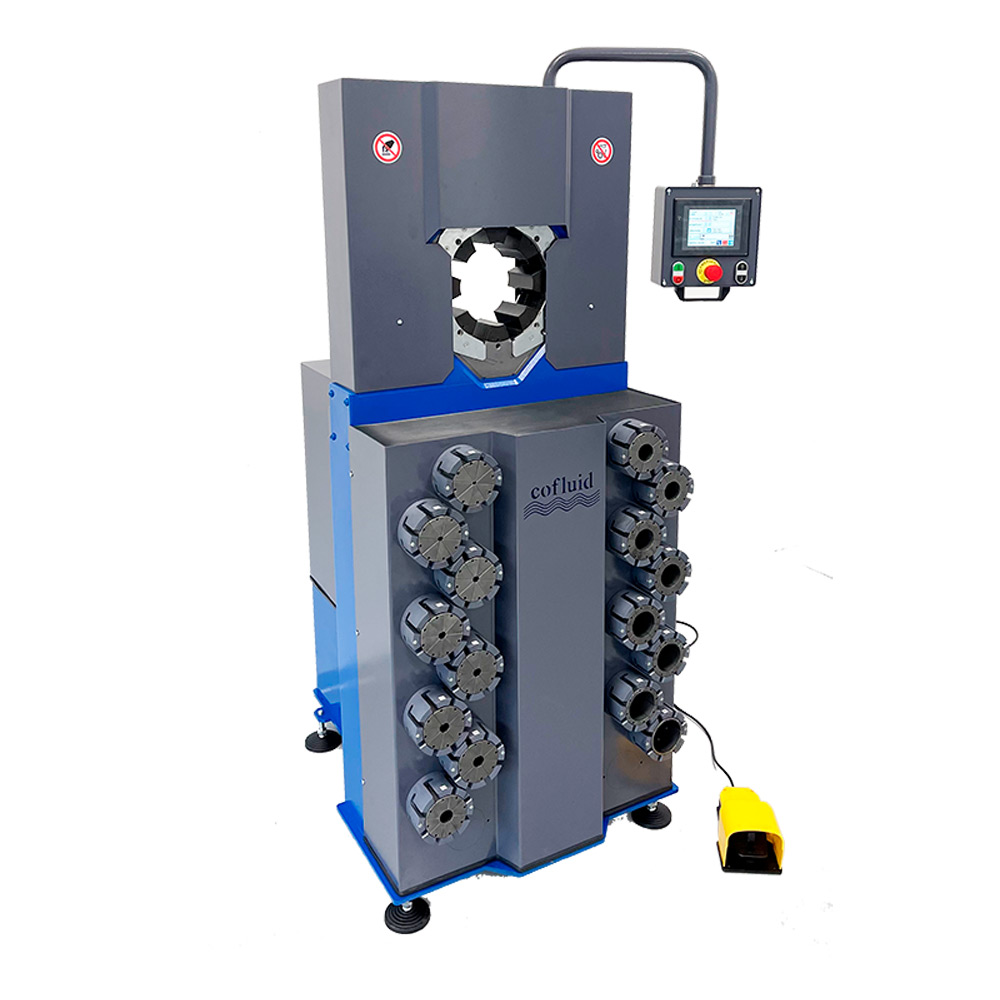

F400ED
Crimping machine with multilingual touch-screen and optical encoder, which is suitable for industrial hoses up to 8”.
This crimper is suitable for those who need high productivity.
MAIN FEATURES:
- ED control with multi-language colour touch screen;
- Silenced pump;
- Double speed;
- Equipped with automatic reopening of the head;
- Narrow, to facilitate the entry of the curved fittings;
- Equipped with hydraulic control unit;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Camera | Electric pedal |
| Automatic lubrication | Rearview mirror |
| Automatic rear stop | ED control with multilingual touch screen |
| Lateral quick change dispenser | Silenced machine |
| Frontal quick change dispenser | Double speed |
| Special voltage | Lighting of the working area |
| Multistep | |
| Quick change aluminum handle | |
| Marking dies | |
| Brake dies | |
| Air conditioning dies | |
| Special dies | |
| Crimp force control | |
| Industry 4.0 kit |
| ø (mm) | 7 | 10 | 13 | 14 | 16 | 18 | 19 | 21 | 22 | 25 | 26 | 30 | 35 | 40 | 45 | 51 | 57 | 63 | 69 | 74 | 78 | 84 | 92 | 100 | 108 | 116 | 120 | 126 | 136 | 146/150 | 150 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 60 | 60 | 60 | 60 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 100 | 100/120 | 100/120 | 105/120 | 105/120 | 105/120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
*Indicative value depending on the product which needs to be crimped
**With die holder
| Crimping Force | 400 Ton (440.92 US TONS) |
|---|---|
| Operating Range | 7-190mm (0.27”-7.48”) |
| Max Crimping Range | 190mm** (7.48”) |
| 6 Spirals Hose | 3”* |
| 4 Spirals Hose | 4”* |
| Industrial Hose | 8”* |
| Max Opening with Dies | +115mm (4.53”) |
| Max Opening without Dies | 283mm (11.14”) |
| Power | 7.5 kw (10 hp) |
| Standard voltage | 400 V 50/60 Hz |
| Dimensions LxWxH | 760x850x1710mm (29.92”x33.46”x67.32”) |
| Weight without oil | 1480 Kg (3262 Lbs) |
| Oil | 70 L |
