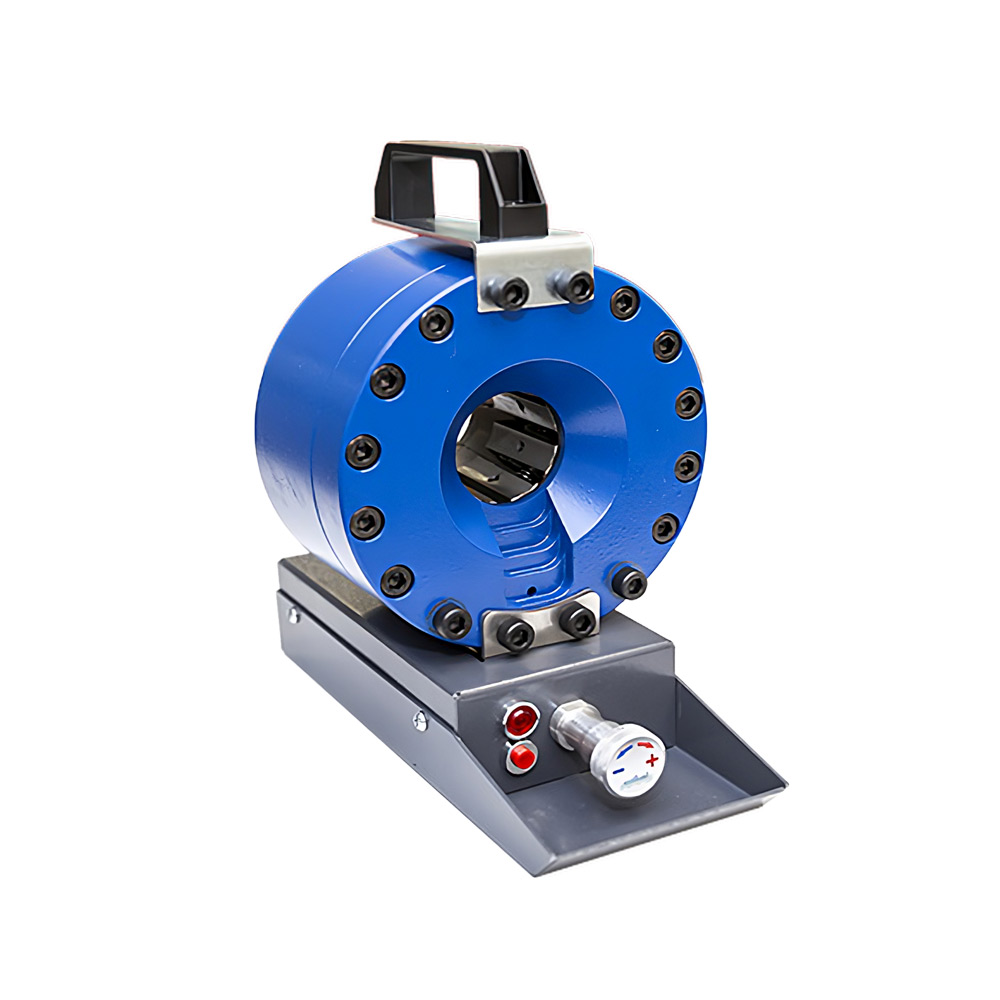

O100B
Crimping head, compact and light, ideal for hydraulic hoses up to 1” R2.
MAIN FEATURES:
- Compact;
- Light weight;
- Flexible;
Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog Measuring Micrometer |
| Special dies | |
| Air conditioning dies | |
| Two-stage manual pump | |
| Pneumo-hydraulic pedal | |
| Battery power unit | |
| Die holder rack |
| ø (mm) | 6.5 | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 39** |
|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 55 | 55 | 55 | 55 | 55 | 55 | 65 | 65 |
* Indicative value depending on the product which needs to be crimped
** With die holder
| Crimping Force | 100Ton (110.23 Us TONS) |
|---|---|
| Operating Range | 6.5-35mm (0.25”-1.38”) |
| Max Crimping Range | 46mm** (1.81”) |
| 4 Spirals Hose | 3/4”* |
| 2 Braids Hose | 1”* |
| Industrial Hose | 1”* |
| Max Opening with Dies | +20mm (0.79”) |
| Max Opening without Dies | 59mm (2.32”) |
| Dimensions LxWxH | 200x320x330mm (7.87’x12.6×13”) |
| Weight | 21 Kg (46.3 Lbs) |
