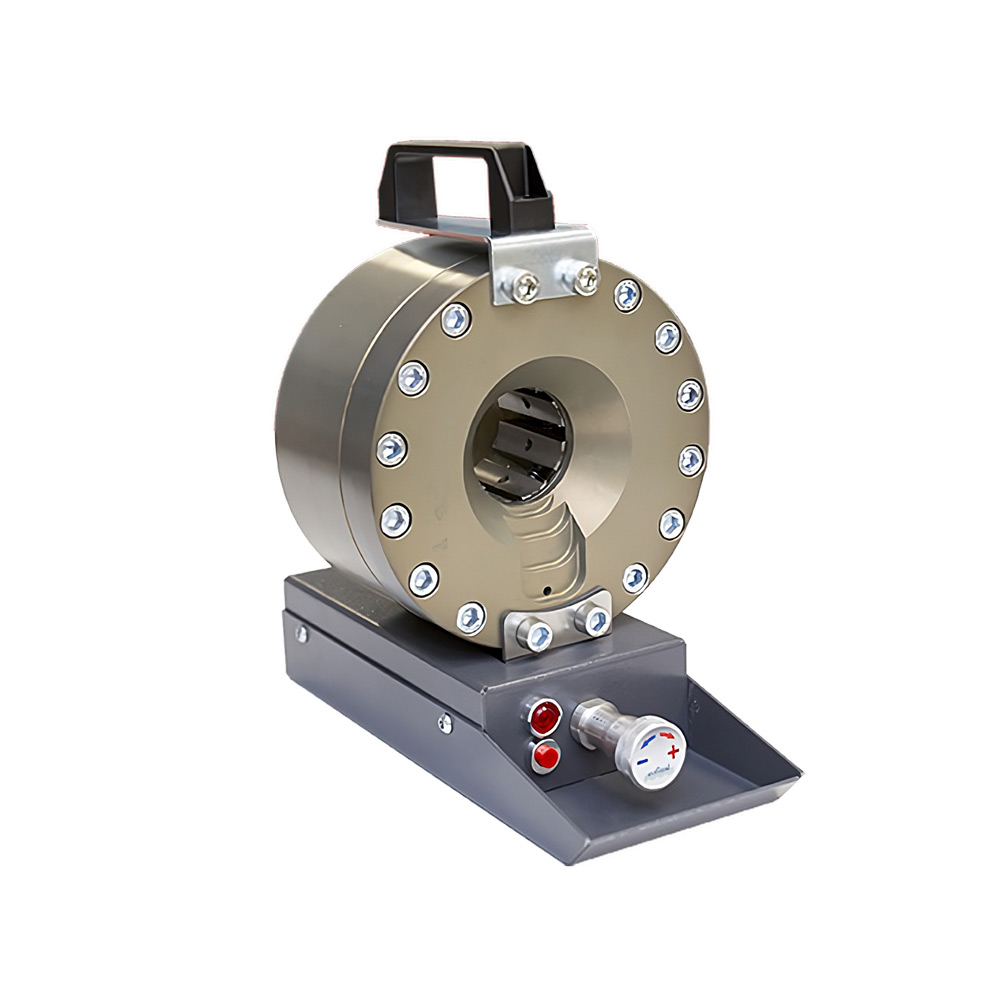

O100BLL
Crimping head, compact and light, ideal for hydraulic hoses up to 1/2″ R2.
This low weight crimper (11 kg) is particularly suitable for transport.
The head can also be fitted with a hand pump or a pneumatic-hydraulic pedal.
MAIN FEATURES:
- Compact;
- Lightweight;
- Versatile;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog measuring micrometer |
| Special dies | |
| Air conditioning dies | |
| Two-stage manual pump | |
| Pneumo-hydraulic pedal | |
| Die holder rack | |
| Battery power unit |
Dies
| ø (mm) | 6.5 | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 39** |
|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 55 | 55 | 55 | 55 | 55 | 55 | 65 | 65 |
* Indicative value depending on the product which needs to be crimped
**WIth die holder
| Crimping Force | 40 Ton (44,09 US TONS) |
|---|---|
| Operating Range | 6.5-35mm (0,25”-1,38”) |
| Max Crimping Range | 46mm** (1,81”) |
| 2 braids hose | 1/2"* |
| Industrial hose | 1"* |
| Max opening with dies | 20mm (0.79") |
| Max opening without dies | 59mm (2.32") |
| Dimensions LxWxH | 200x320x330mm (7.87"x12.6"x13") |
| Weight | 11kg (24.25lbs) |
