O100M

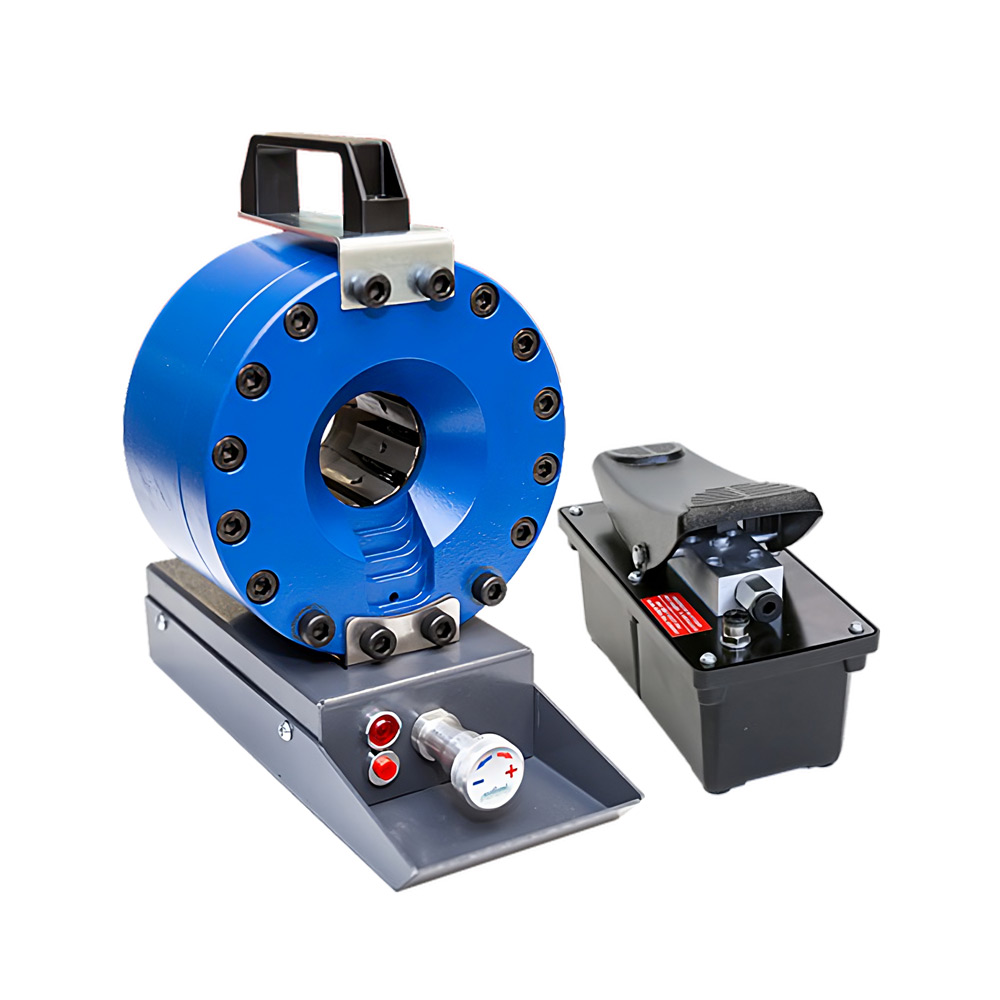

Crimping Machine with pneumo-hydraulic pedal, compact and light, ideal for hydraulic hoses up to 1″ R2.
This low weight crimper (21 kg) is particularly suitable for transport.
The head can also be fitted with a hand pump.
MAIN FEATURES:
- Compact;
- Lightweight;
- Versatile;
Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog Measuring Micrometer |
| Special dies | Pneumo-hydraulic pedal |
| Air conditioning dies | |
| Two-stage manual pump | |
| Battery power unit | |
| Die holder rack |
| ø (mm) | 6.5 | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 39** |
|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 55 | 55 | 55 | 55 | 55 | 55 | 65 | 65 |
*Indicative value depending on the product which needs to be crimped
**With die holder
| Crimping Force | 100 Ton (110.23 US TONS) |
|---|---|
| Operating Range | 6.5-35mm (0.25”-1.38”) |
| Max Crimping Range | 46mm** (1.81”) |
| 4 Spirals Hose | 3/4”* |
| 2 Braids Hose | 1”* |
| Industrial Hose | 1”* |
| Max Opening with Dies | +20mm (0.79”) |
| Max Opening without Dies | 59mm (2.32”) |
| Dimensions LxWxH | 200x320x330mm (7.87”x12.6”x13”) |
| Weight | 25 Kg (55.1 Lbs) |
