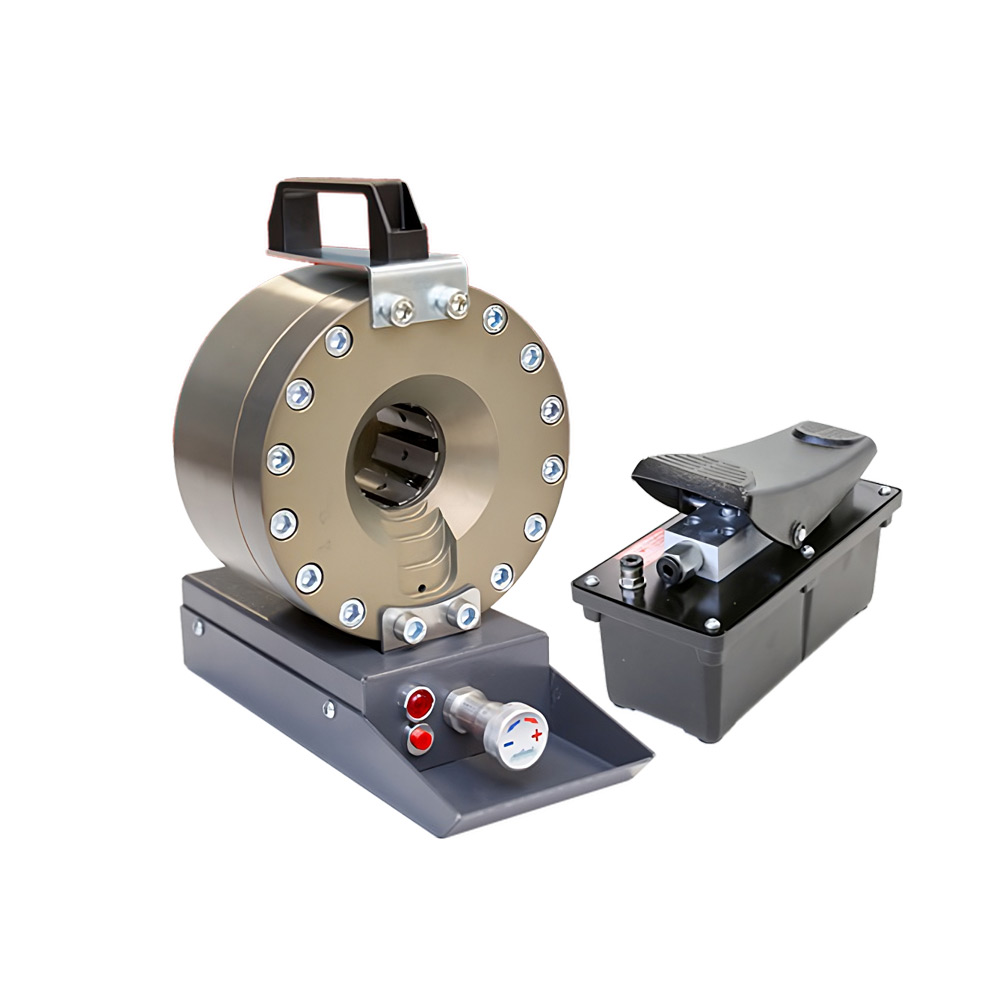

O100MLL
Crimping Machine with pneumo-hydraulic pedal, compact and light, ideal for hydraulic hoses up to 1/2″ R2.
This low weight crimper (11 kg) is particularly suitable for transport.
The head can also be fitted with a hand pump.
MAIN FEATURES:
- Compact;
- Lightweight;
- Versatile;
Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog Measuring Micrometer |
| Special dies | |
| Air conditioning dies | |
| Two-stage manual pump | |
| Pneumo-hydraulic pedal | |
| Battery power unit | |
| Die holder rack |
| Crimping Force | 40 Ton (44.09 US TONS) |
|---|---|
| Operating Range | 6.5-35mm (0.25”-1.38”) |
| Max Crimping Range | 46mm ** (1.81”) |
| 2 Braids Hose | 1/2”* |
| Industrial Hose | 1”* |
| Max Opening with Dies | +20mm (0.79”) |
| Max Opening without Dies | 59mm (2.32”) |
| Dimensions LxWxH | 200x320x330mm (7.87”x12.6”x13”) |
| Weight | 11 Kg (24.25 Lbs) |
