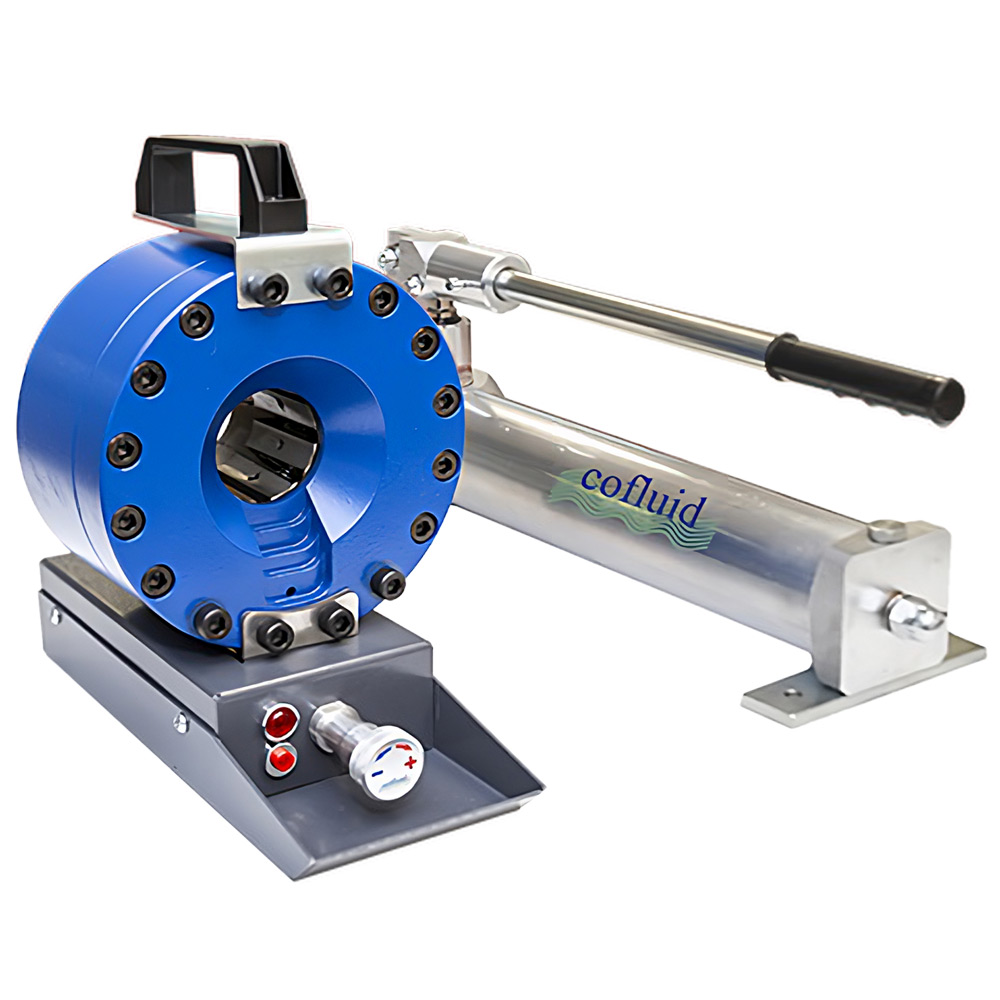

O100P2
Crimping Machine with 2-stage manual pump, compact and light, ideal for hydraulic hoses up to 1″ R2.
This low weight crimper (21 kg) is particularly suitable for transport.
The head can also be fitted with a pneumo-hydraulic pedal
MAIN FEATURES:
- Compact;
- Lightweight;
- Versatile;
Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog Measuring Micrometer |
| Special dies | Two-stage manual pump |
| Air conditioning dies | Double speed |
| Pneumo-hydraulic pedal | |
| Die holder rack | |
| Battery power unit |
| ø (mm) | 6.5 | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 39** |
|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 55 | 55 | 55 | 55 | 55 | 55 | 65 | 65 |
*Indicative value depending on the product which needs to be crimped
**With die holder
| Crimping Force | 100 Ton (110.23 US TONS) |
|---|---|
| Operating Range | 6.5-35mm (0.25”-1.38”) |
| Max Crimping Range | 46mm** (1.81”) |
| 4 Spirals Hose | 3/4”* |
| 2 Braids Hose | 1”* |
| Industrial Hose | 1”* |
| Max Opening with Dies | +20mm (0.79”) |
| Max Opening without Dies | 59mm (2.32”) |
| Dimensions LxWxH | 200x320x330mm (7.87”x1″,6”x13”) |
| Weight | 25 Kg (55.1 Lbs) |
