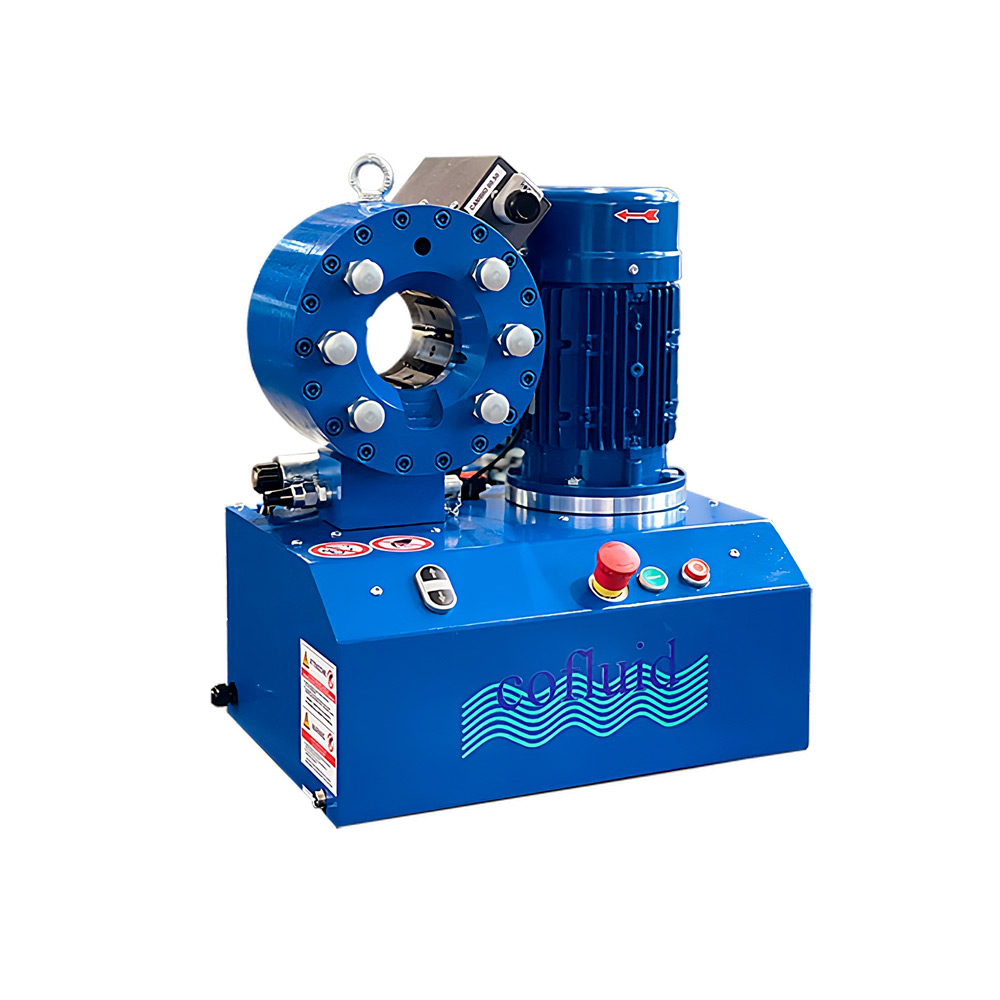

O135E
Crimping Machine with electrical control and analog measuring micrometer, which is suitable for flexible hydraulic hoses up to 1.1/4″ R2.
MAIN FEATURES:
- Compact;
- Equipped with hydraulic control unit;
- Versatile;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Electrical pedal | Silenced machine |
| Portable dispenser | |
| Quick change aluminum handle | |
| Special voltage | |
| Marking dies | |
| Special dies | |
| Brakes dies | |
| Air conditioning dies | |
| Fixed rear stop |
| ø (mm) | 6.5 | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 35 | 40 | 45 | 51# | 69** |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 70 | 70 | 85 | 85 | 85 |
*Indicative value depending on the product which needs to be crimped
**With die holder
#Without quick change
| Crimping Force | 135 Ton (148.81 US TONS) |
|---|---|
| Operating Range | 7-57mm (0.27”-2.24”) |
| Max Crimping Range | 74mm** (2.91”) |
| 4 Spirals Hose | 1”* |
| 2 Braids Hose | 1.1/4”* |
| Industrial Hose | 1.1/2”* |
| Max Opening with Dies | +29mm (1.14”) |
| Max Opening without Dies | 100mm (3.94”) |
| Power | 1.5 Kw (2 Hp) |
| Standard voltage | 400 V 50/60 Hz |
| Dimensions LxWxH | 360x500x545mm (14.18”x19.69”x21.46”) |
| Weight without oil | 94 Kg (264.55 Lbs) |
| Oil | 15 L |
