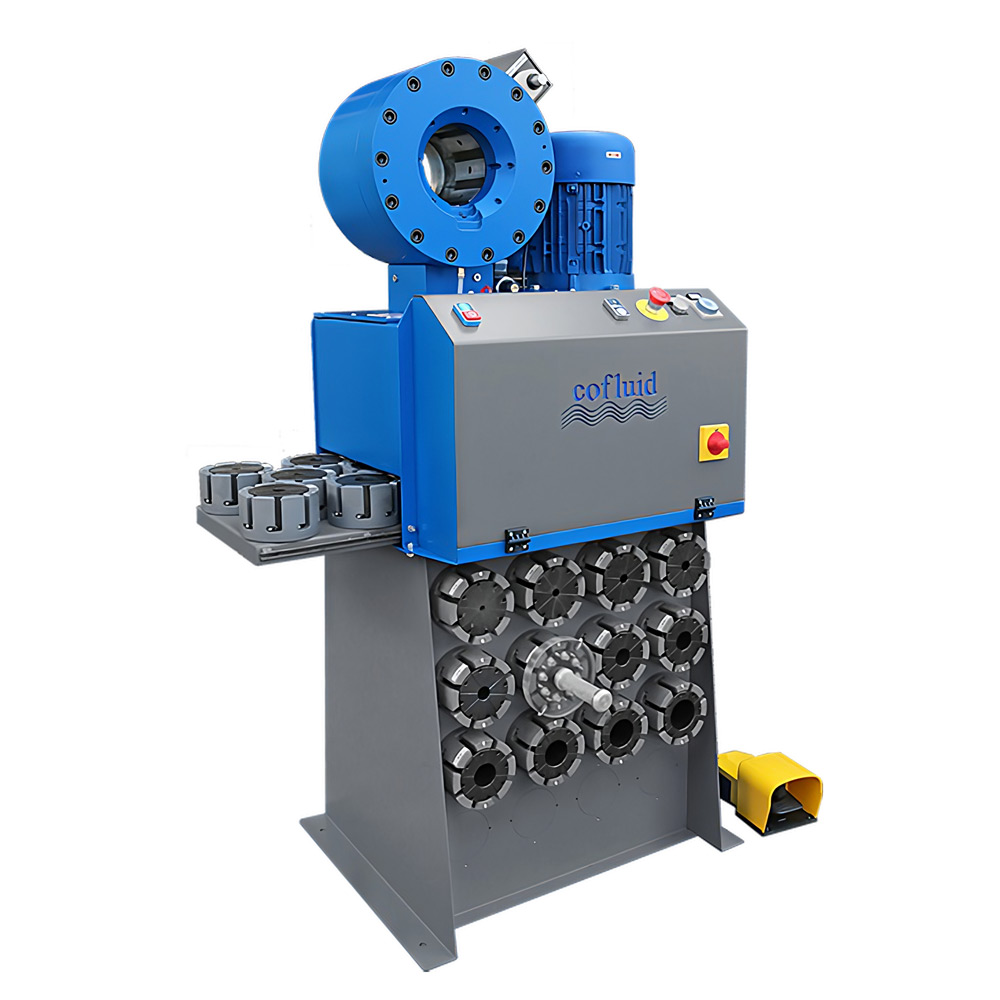

O260EL Showroom Model
This is a new machine from our showroom!
Crimping machine with electrical control and analog measuring micrometer, which is siutable for 4SP flexible hydraulic hoses up to 2″ and for industrial hoses up to 3”.
MAIN FEATURES:
- Powerful;
- Equipped with “MANUAL/AUTOMATIC” function;
- Equipped with automatic opening of the head;
- Equipped with hydraulic control unit;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Modular base dispenser + quick change | Electric pedal |
| Dispenser drawer + quick change | Silenced machine |
| Fixed rear stop | Storage drawer |
| Quick change aluminum handle | Double speed |
| Special dies | Automatic opening adjustment |
| Marking dies | El Control |
| Brakes dies | |
| Air conditioning dies | |
| Automatic rear stop | |
| Camera | |
| Special voltage |
| ø (mm) | 7 | 10 | 13 | 14 | 16 | 18 | 19 | 21 | 22 | 25 | 26 | 30 | 35 | 40 | 45 | 51 | 57 | 63 | 69 | 74 | 78 | 84# | 96** |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 60 | 60 | 60 | 60 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 90 | 90 | 100 | 100 | 100 | 105 | 105 | 105 | 105 |
* Indicative value depending on the product which needs to be crimped
** With die holder
# Without quick change
| Crimping Force | 290 Ton (319 US TONS) |
|---|---|
| Operating Range | 7-84mm (0.27”-3.39”) |
| Max Crimping Range | 102mm** (4.01”) |
| 6 Spirals Hose | 1.1/2”* |
| 4 Spirals Hose | 2”* |
| Industrial Hose | 3”* |
| Max Opening with Dies | +44mm (1.79”) |
| Max Opening without Dies | 140mm (5.51”) |
| Power | 4Kw (5.5Hp) |
| Standard voltage | 400 V 50/60 Hz |
| Dimensions LxWxH | 700x550x880mm (27.56”x21.65”x34.64”) |
| Weight without oil | 250 Kg (551.16 Lbs) |
| Oil | 45 L |
