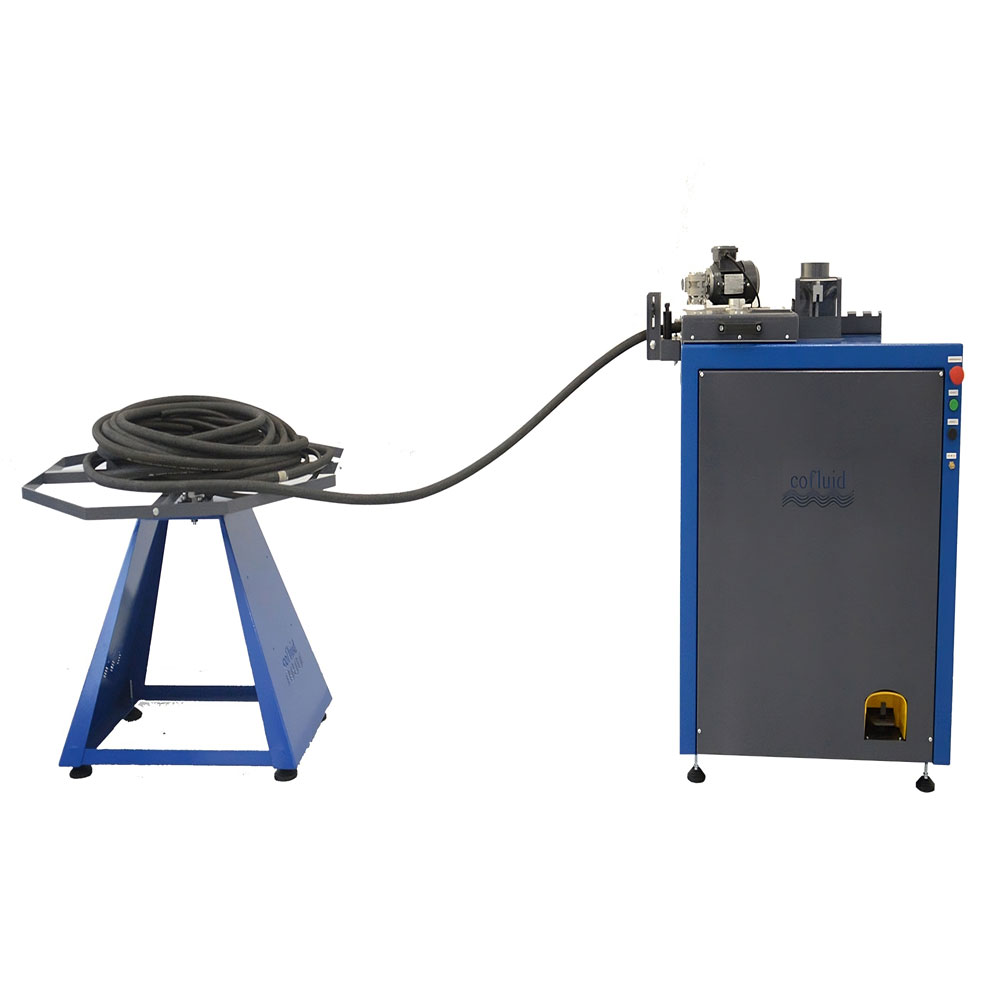

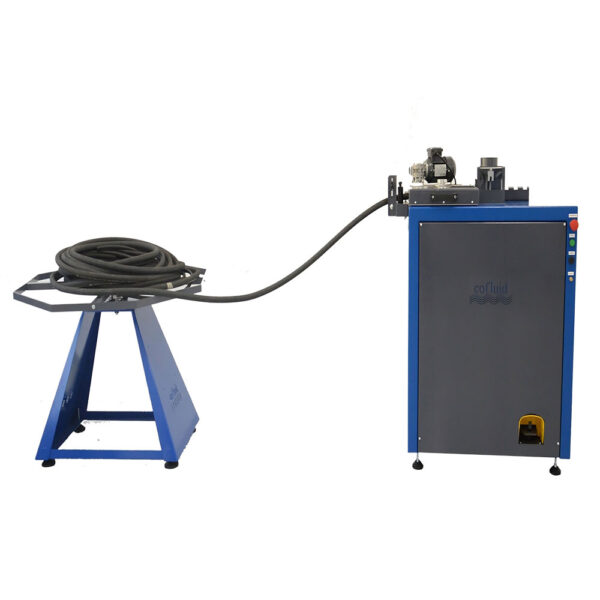

TA400PA

Automatic and manual cutting machine for hydraulic hoses up to 2″. Use the machine with automatic or manual CNC.

*Product specifications are subject to change without notice.

Call +353 (41)-213-6226

Call to get details about this item or alternatively click the button below to fill out a short information request form.

OPTIONAL ACCESSORIES	INCLUDED
Special voltage	Cooled blade Ø400
Smooth blade Ø400	Protective shield
Hose measuring support pmeumatic L. 3000	Fume hood with connection for extraction system
Modular hose measuring support	Hose roller guide
Manual hose unwinder
Electric hose unwinder

Maximum R2 cutting	2.1/2”* [Or up to 3/4” on the on the Automatic Cutting version]
Optimal 4SP	2”* [Or up to 3/4” on the on the Automatic Cutting version]
Max Pneumatic supply	8 Bar
Cutter’s engine	4 Kw (5 Hp) – 400 V – 50/60 Hz
Blade diameter	Ø400mm (15.75”)
Maximum cutting Ø	90mm (3.54”)
Dimensions LxWxH	520x1100xh1250mm (20.47”x43.30”x49.21”)
Weight	195 Kg (429.90 Lbs)
