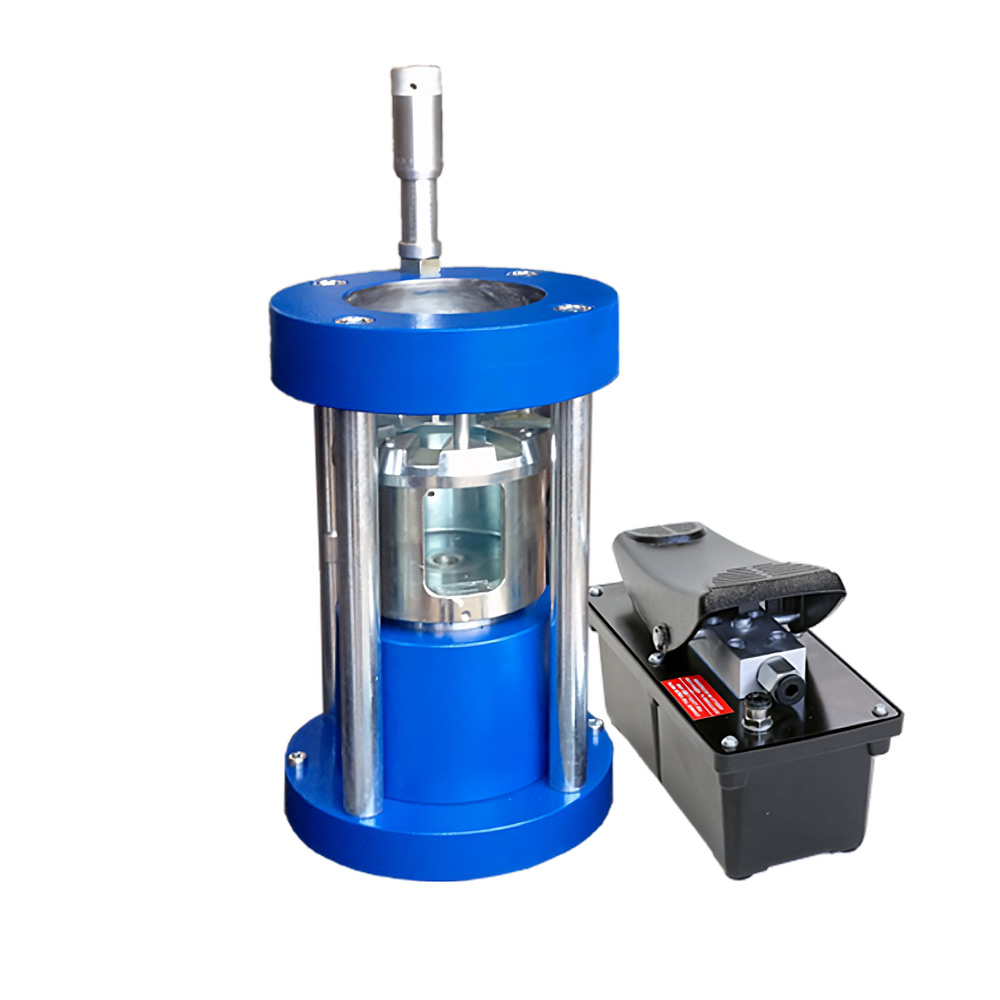

V30M
Vertical crimping machine with pneumatic-hydraulic pump, for hoses up to 3/4″ 4SP – 1” R2 also siutable elbow+elbow.
The crimper is also useful for hoses that demand curved fittings.
A manual pump can also be applied to the head.
MAIN FEATURES:
- Compact;
- Ideal for double curves;
- Versatile;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog measuring micrometer |
| Special dies | Pneumo-hydraulic pedal |
| Air conditioning dies | |
| Two-stage manual pump |
| ø (mm) | 7 | 10 | 13 | 16 | 19 | 22 | 25 | 30 | 33 | 38 |
|---|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
*Indicative value depending on the product which needs to be crimped
| Crimping Force | 70 Ton (77.16 US TONS) |
|---|---|
| Operating Range | 7-45mm (0.27”-1.77”) |
| 4 Spirals Hose | 3/4”* |
| 2 Braids Hose | 1”* |
| Dimensions LxWxH | 350x400x540mm (13.78”x25.75”x21.26”) |
| Weight | 40 Kg (88.19 Lbs) |
