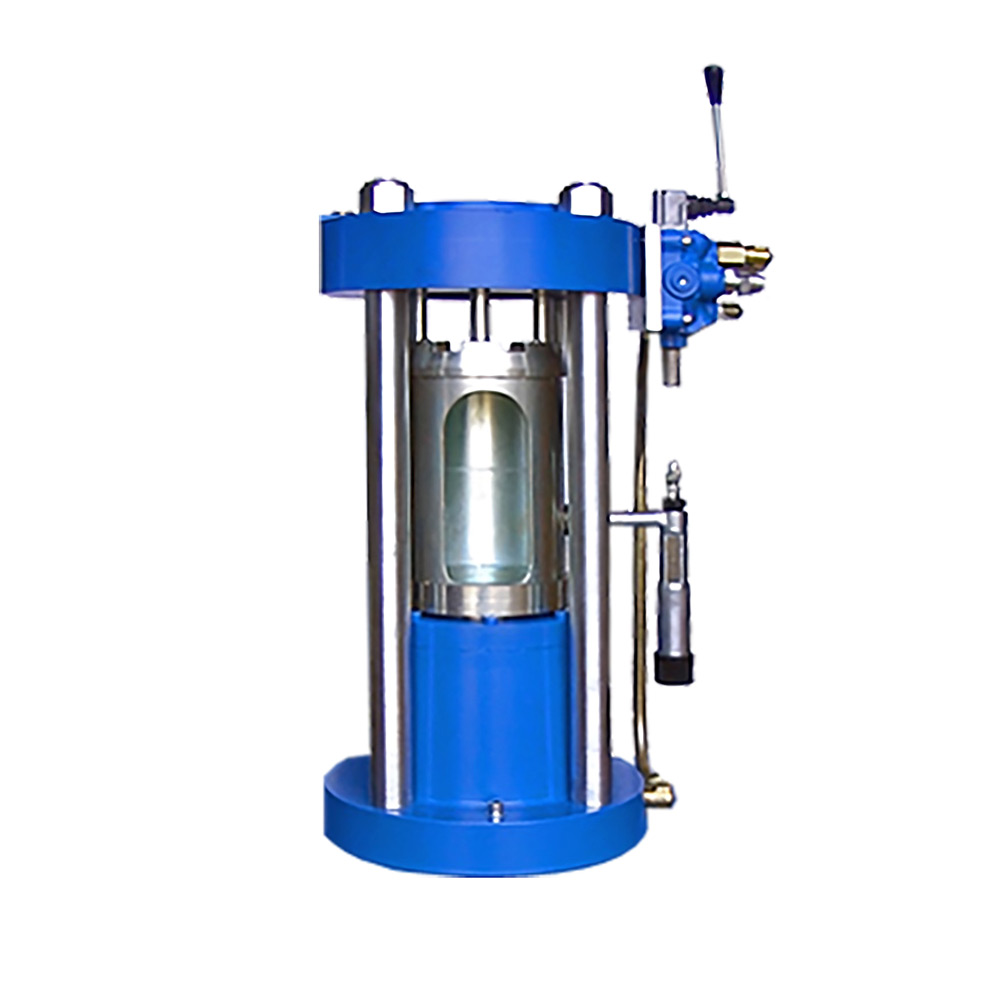

VC80B
Vertical crimping head, with lever-action distributor and analog measuring micrometer, for hydraulic hoses up to 1.1/4″ 4 SP.
The crimper is also useful for hoses that demand curved fittings.
The head can also be fitted with an pneumo-hydraulic pedal, a hand pump or a control unit.
MAIN FEATURES:
- Compact;
- Ideal for double curves;
- Versatile;
*Product specifications are subject to change without notice.
Call +353 (41)-213-6226
Call to get details about this item or alternatively click the button below to fill out a short information request form.
| OPTIONAL ACCESSORIES | INCLUDED |
|---|---|
| Brakes dies | Analog measuring micrometer |
| Special dies | |
| Air conditioning dies |
| ø (mm) | 7 | 10 | 13 | 16 | 19 | 22 | 25 | 30 | 38 | 50 | 65 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L (mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
*Indicative value depending on the product which needs to be crimped
| Crimping Force | 170 Ton (187.39 US TONS) |
|---|---|
| Operating Range | 7-72mm (0.27”-2.83”) |
| 4 Spirals Hose | 1.1/4”* |
| 2 Braids Hose | 1.1/2”* |
| Dimensions LxWxH | 400x320x860mm (15.75”x12.6”x33.46”) |
| Weight | 156 Kg (343.92 Lbs) |
